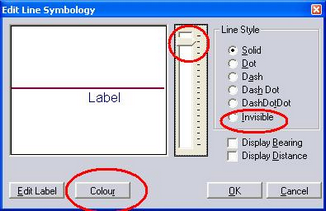

Edit Line allows you to modify the line colour, width and line style. Line styles may be set to Solid, Dot, Dash, Dash Dot or Dash Dot Dot. Only solid line styles may have a line width greater than one. The Invisible option makes the Line invisible but enables a label to be placed in that location.
The other feature available from the edit line form is the ability to add bearings and / or dimensions to features. This functionality is only available to map layers that are being drawn from a database. This includes the following layers:
| • | Legal Road |
| • | Edit Layer |
| • | Any other database layer or feature that is added by the user. |
