Import using Address Geocoding

Top  Previous  Next

By pre processing the data you would be able to get a better match when importing data using the Address Geocoding function.  eg using street type abbreviations such as

Rd

St

Ave

Dr

Cres

Tce



NOTE:  QuickMap uses “Place” not “Pl”



It is also possible to validate the spelling of road names and districts by comparing these to the QuickMap data within the QMap\Data\Legal\north_address.mdb



Click on File, Import and choose the Import Wizard, OK



.geocode_imp



Select the Database and OK

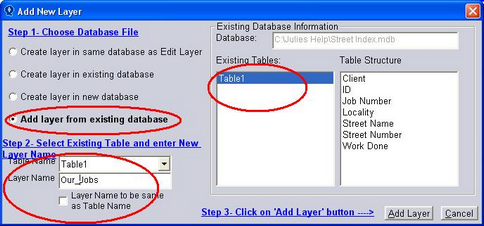

This will bring up the Add New Layer dialog box with the option Add Layer from Existing Database automatically selected from Step 1.

Select the Table containing the Data and give the Layer a name, removing the tick if it is to be different from the Table and Select Add Layer from Step 3.

geocode_1

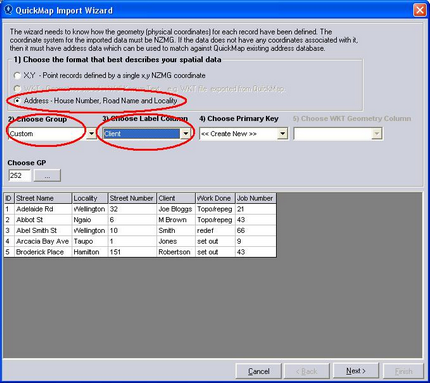

In Step 1 from the Dialog box below, select Address - House Number, Road Name and Locality

geocode_2

Choose the Group the layer is to be created in, the field representing the label and let QuickMap create a new Primary Key.

Select Next

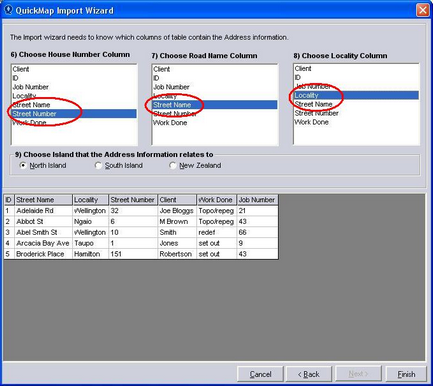

Follow Steps 6 - 9 then click on Finish



geocode_3



Some records may require manual geocoding.



To change the Layer Group, Update Attributes or Modify Structure
