QuickMap allows QuickMap layers to be overlayed in Google, or Google Earth photography to be pasted into QuickMap.



To overlay QuickMap in Google Earth:



Select the Google Theme which will ensure the parcels and NZ Layers are hollow.  Otherwise, adjust symbology to meet individual requirements.

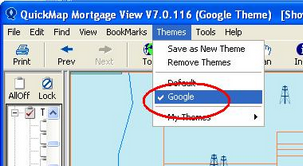

Google_Theme

From within QuickMap select View->View Map in Google Earth off the menu (or Shift/F3)



NOTE:  Google Earth is required to be installed on the computer.  See http://earth.google.com/ for downloads and licensing agreements.

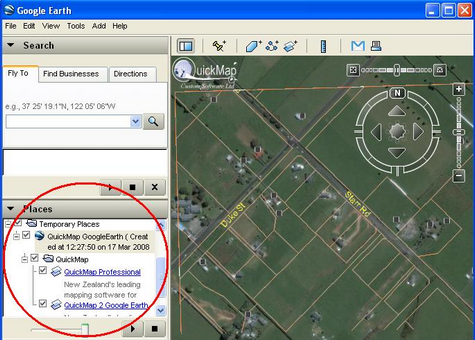

Google



Google images are not ortho rectified so it may be necessary to realign boundaries





NOTE:  It is important to NOT save QuickMap overlays in the Temporary Places or My Places folder.



To save a file, open out the folder, right mouse click on QuickMap 2 Google Earth and select Save As.  This will provide the opportunity to save the file as a .kmz file which can then also be emailed.

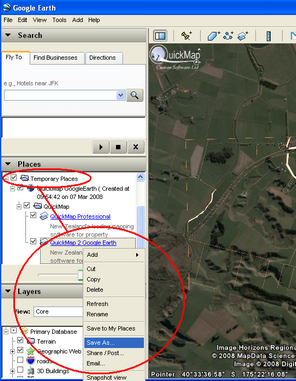

google_Save



Links are also available for Weatherbonk, Google Maps and Virtual Earth
